DHZ Fusion Pro / Prestige Pro
One premium pin-loaded family, two finish tiers. 21 stations.
DHZ’s flagship selectorized line: 21 pin-loaded stations with a flat-edge frame, isolateral movement arms and the kind of finish that anchors a premium floor. Fusion Pro and Prestige Pro are the same machines in two trims, so you pick by interior direction and budget, not by mechanics.
The line covers every major muscle group, from leg press and hack-angle leg work to shoulder press, rear delt/pec fly, lat pulldown, long pull and a full trunk group. Movement arms are independent left and right, so members train each side through its own path, and start positions adjust without leaving the seat.
What sets the Pro line apart mechanically is the frame: 3.0 mm-gauge steel tube against the 2.5 mm used across the Prestige / Predator / Evost family. The thicker wall carries heavier weight stacks and takes harder daily use, which is why this is the line to spec for strength-focused floors and high-traffic clubs.
Frames come in Pearl Black, Pearl Silver or Pearl White, with Black, Saddle Brown, Reddish Brown or Mocha upholstery, so a full circuit can match one interior scheme. Send us your floor plan and we’ll quote both trims against it.
Two trims, one machine family
Fusion Pro and Prestige Pro (the A-suffix codes) are the same selectorized machines. Both are flagship-grade; the step up is materials and finish.

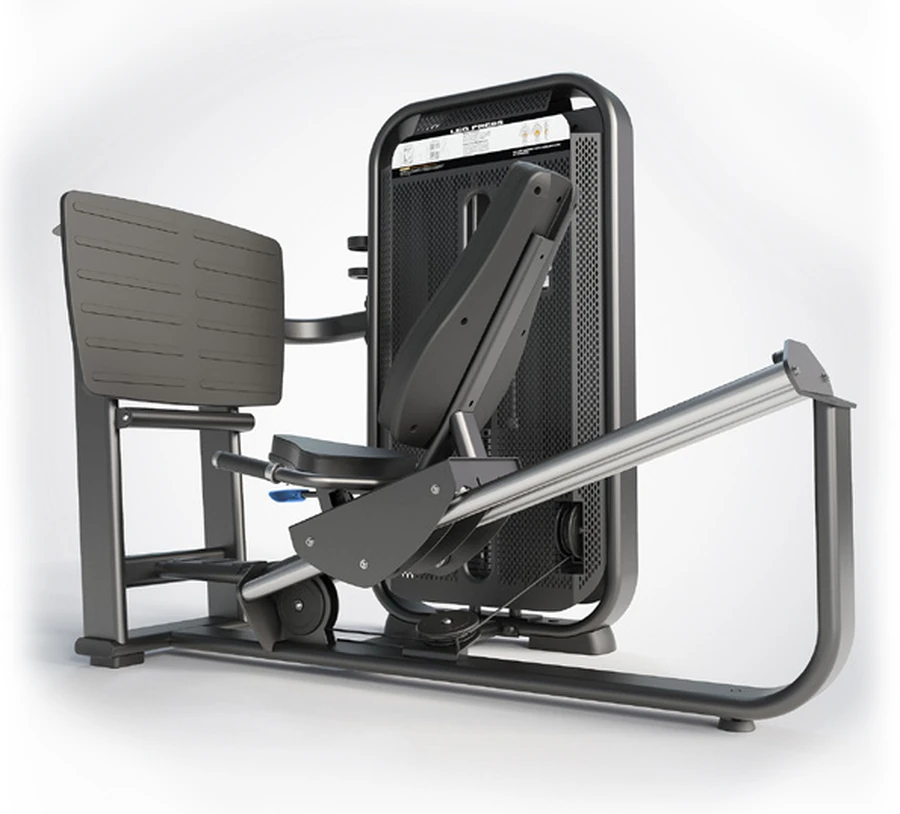

Fusion Pro
The Premium- All-graphite finish with a flawless flat-edge design
- Gas-spring assisted adjustments, rubber over-molded touch points
- Independent, converging movement arms

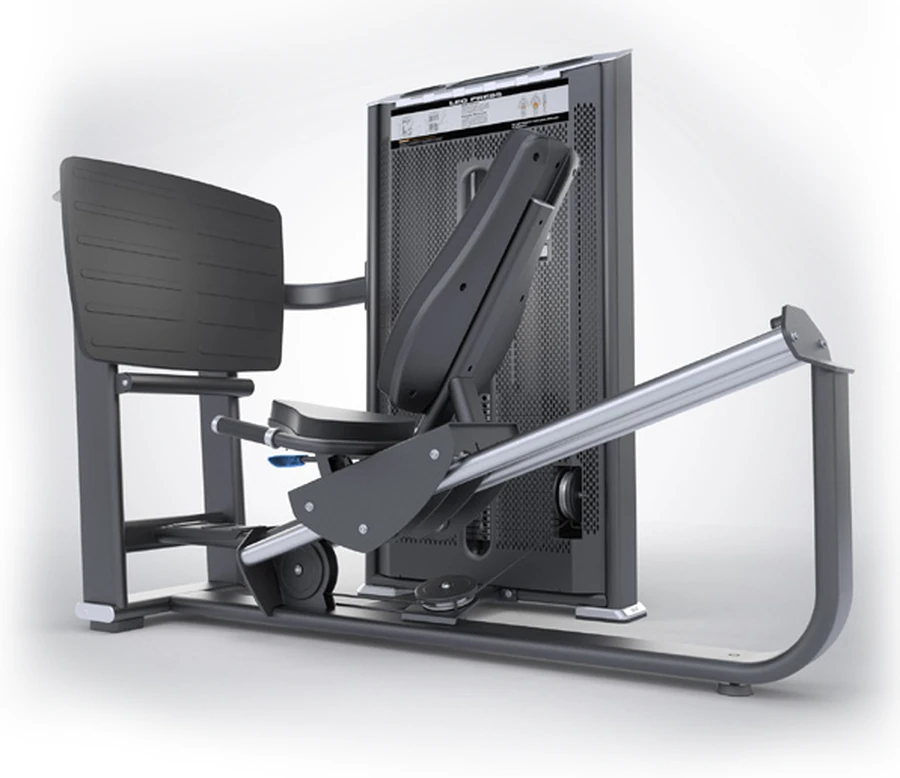

Prestige Pro
The Ultimate- Everything in Fusion Pro, plus brushed aluminium components
- Two-tone industrial design, DHZ's most durable build
- The flagship trim, top of the selectorized range
Same frames, same biomechanics, same weight stacks. Pick the finish that suits your floor; the trim rides on your quote.
Colour options
Frame
- Pearl Black
- Pearl Silver
- Pearl White
Upholstery
- Black
- Saddle Brown
- Reddish Brown
- Mocha
Swatches are indicative; final finish is confirmed at quotation.

E7001
Prone Leg Curl
- Footprint: 1610 x 1095 mm
- 110 kg / 135 kg stack
- 244 kg

E7002
Leg Extension
- Footprint: 1425 x 1165 mm
- 110 kg / 135 kg stack
- 257 kg

E7003
Leg Press
- Footprint: 1870 x 1086 mm
- 357 kg

E7005
Lateral Raise
- Footprint: 1300 x 970 mm
- 110 kg / 135 kg stack
- 245 kg

E7006
Shoulder Press
- Footprint: 1550 x 1550 mm
- 110 kg / 135 kg stack
- 263 kg

E7007
Rear Delt/Pec Fly
- Footprint: 1280 x 1430 mm
- 249 kg

E7008
Vertical Press
- Footprint: 1435 x 1125 mm
- 110 kg / 135 kg stack
- 249 kg

E7009-G01
Dip / Chin Assist
- Footprint: 1930 x 1000 mm
- 110 kg / 135 kg stack
- 287 kg

E7010
Standing Calf
- Footprint: 1860 x 820 mm
- 80 kg / 95 kg stack
- 280 kg

E7012-G01
Lat Pulldown
- Footprint: 1190 x 1200 mm
- 110 kg / 135 kg stack
- 249 kg

E7016
Cable Crossover
- Footprint: 4400 x 750 mm
- 110 kg stack
- 440 kg

E7017
Functional Trainer
- Footprint: 1950 x 1040 mm
- 95 kg stack
- 381 kg

E7018
Rotation
- Footprint: 1150 x 1130 mm
- 65 kg / 95 kg stack
- 260 kg

E7021
Abductor & Adductor
- Footprint: 1550 x 860 mm
- 110 kg / 135 kg stack
- 260 kg

E7023
Seated Leg Curl
- Footprint: 1665 x 1145 mm
- 110 kg / 135 kg stack
- 276 kg

E7024-G01
Glute Isolator
- Footprint: 2145 x 1030 mm
- 110 kg / 135 kg stack
- 275 kg

E7026
Seated Dip
- Footprint: 1320 x 1055 mm
- 110 kg / 135 kg stack
- 259 kg

E7030
Camber Curl
- Footprint: 1500 x 930 mm
- 80 kg / 95 kg stack
- 197 kg

E7031
Back Extension
- Footprint: 1285 x 1055 mm
- 110 kg / 135 kg stack
- 250 kg

E7033-G01
Long Pull
- Footprint: 1780 x 1320 mm
- 110 kg / 135 kg stack
- 262 kg

E7034
Vertical Row
- Footprint: 1505 x 1005 mm
- 110 kg / 135 kg stack
- 256 kg

E7035
Pull Down
- Footprint: 1520 x 1445 mm
- 110 kg / 135 kg stack
- 265 kg

E7073
Abdominal Isolator
- Footprint: 1150 x 1060 mm
- 110 kg / 135 kg stack
- 229 kg
Planning a gym? Talk to the people who run 20 of them.
Tell us your floor plan and budget. We quote fast!
